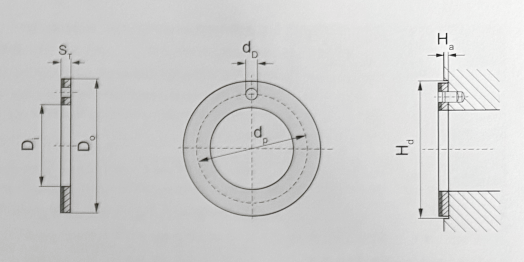

Shaft Ds |
Standard No. |
Washer size |
Assemble size |
Hd+0.12 |
|||||
Di+0.25 |
Do-0.25 |
Sr-0.05 |
dp±0.125 |
dD |
+0.4 +0.1 |
Ha±0.2 |
|||
8 |
W10 |
10 |
20 |
1.5 |
15 |
1.5 |
1 |
20 |
|
10 |
W12 |
12 |
24 |
18 |
24 |
||||
12 |
W14 |
14 |
26 |
20 |
2 |
26 |
|||
14 |
W16 |
16 |
30 |
23 |
30 |
||||
16 |
W18 |
18 |
32 |
25 |
32 |
||||
18 |
W20 |
20 |
36 |
28 |
|
36 |
|||
20 |
W22 |
22 |
38 |
30 |
38 |
||||
22 |
W24 |
24 |
42 |
33 |
42 |
||||
24 |
W26 |
26 |
44 |
35 |
44 |
||||
26 |
W28 |
28 |
48 |
38 |
4 |
48 |
|||
30 |
W32 |
32 |
54 |
43 |
54 |
||||
36 |
W38 |
38 |
62 |
50 |
62 |
||||
40 |
W42 |
42 |
66 |
54 |
66 |
||||
46 |
W48 |
48 |
74 |
2 |
61 |
1.5 |
74 |
||
50 |
W52 |
52 |
78 |
65 |
78 |
||||
60 |
W62 |
62 |
90 |
76 |
90 |
