  • Bronze sleeve bushing specification & tolerance

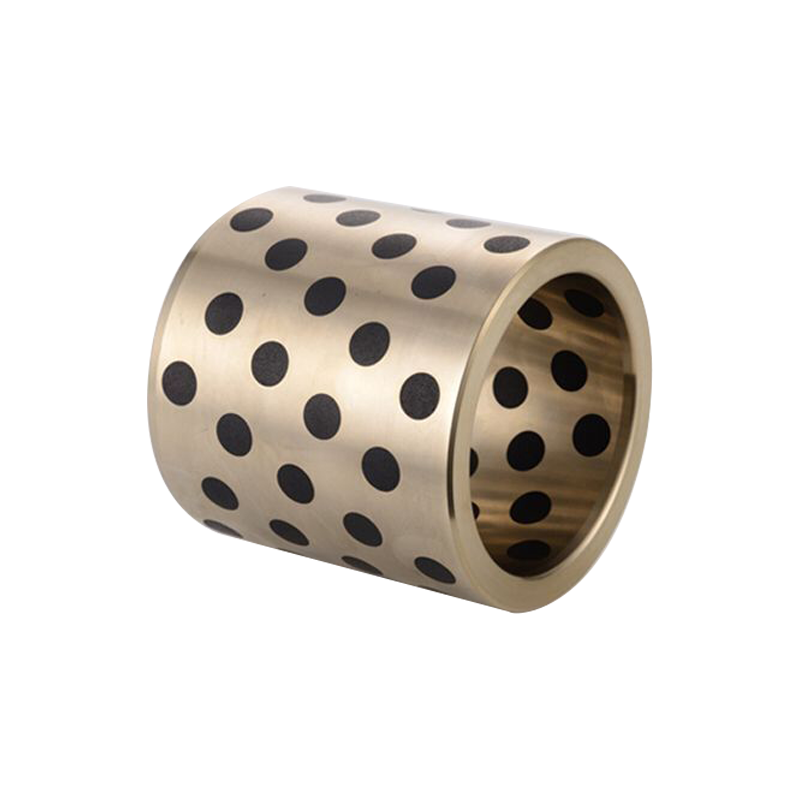

Bronze sleeve bushing specification & tolerance

+86-13456233925 Contact Us
PREV：Bushes (80B)NEXT：Self-lubricating bushes
  • Description
  • Feedback

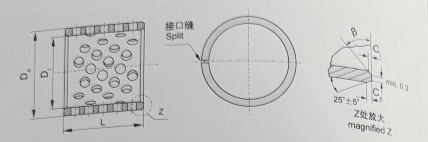

  • ID and  OD chamfers
    S3 C0 Ci β
    0.75 0.5 ±0.3 0.25 ±0.2 35°±5°
    1.00 0.6 ±0.3 0.30 ±0.2 35°±5°
    1.50 0.7 ±0.3 0.50 ±0.3 35°±5°
    S3 C0 Ci β
    2.00 1.2±0.4 0.50±0.3 35°±5°
    2.50 1.8±0.6 0.60±0.3 45°±5°

    Inside diameter
    Di Фd    		 Outside diameter
    Do ФD    		 L 0/-0.40
    10 15 20 25 30 35 40 50 60 70 80 90 100
    10 12 1010 1015 1020
    12 14 1210 1215 1220
    14 16 1410 1415 1420 1425
    15 17 1610 1515 1520 1525
    16 18 1810 1615 1620 1625
    18 20 2010 1815 1820 1825
    20 23 2210 2015 2020 2025
    22 25 2215 2220 2225 2230
    24 27 2415 2420 2425 2430
    25 28 2515 2520 2525 2530
    28 31 2815 2820 2825 2830
    30 34 3015 3020 3025 3030 3035 3040
    32 36 3215 3220 3225 3230 3235 3240
    35 39 3515 3520 3525 3530 3535 3540
    40 44 4020 4025 4030 4035 4040 4050
    45 50 4520 4525 4530 4535 4540 4550
    50 55 5020 5025 5030 5035 5040 5050 5060
    55 60 5520 5525 5530 5535 5540 5550 5560
    60 65 6025 6030 6035 6040 6050 6060 6070
    65 70 6530 6535 6540 6550 6560 6570
    70 75 7030 7035 7040 7050 7060 7070 7080
    75 80 7530 7535 7540 7550 7560 7570 7580
    80 85 8030 8035 8040 8050 8060 8070 8080
    85 90 8530 8535 8540 8550 8560 8570 8580 8590
    90 95 9030 9035 9040 9050 9060 9070 9080 9090
    95 100 9540 9550 9560 9570 9580 9590 95100


    Inside diameter
    Di Фd    		 Outside diameter
    Do ФD    		 L 0/-0.40
    25 30 35 40 50 60 70 80 90 100
    100 105 10050 10060 10070 10080 10090 100100
    105 110 10550 10560 10570 10580 10590 105100
    110 115 11050 11060 11070 11080 11090 110100
    115 120 11550 11560 11570 11580 11590 115100
    120 125 12060 12070 12080 12090 120100
    125 130 12560 12570 12580 12590 125100
    130 135 13060 13070 13080 13090 130100
    135 140 13560 13570 13580 13590 135100
    140 145 14060 14070 14080 14090 140100
    145 150 14560 14570 14580 14590 145100
    150 155 15060 15070 15080 15090 150100
    155 160 15560 15570 15580 15590 155100
    160 165 16060 16070 16080 16090 160100
    165 170 16560 16570 16580 16590 165100
    170 175 17060 17070 17080 17090 170100
    175 180 17560 17570 17580 17590 175100
    180 185 18060 18070 18080 18090 180100
    185 190 18560 18570 18580 18590 185100
    190 195 19060 19070 19080 19090 190100
    195 200 19560 19570 19580 19590 195100
    200 205 20060 20070 20080 20090 200100
    205 210 20560 20570 20580 20590 205100
    210 215 21060 21070 21080 21090 210100
    215 220 21560 21570 21580 21590 215100
    220 225 22060 22070 22080 22090 220100
    225 230 22560 22570 22580 22590 225100
    230 235 23060 23070 23080 23090 230100
    235 240 23560 23570 23580 23590 235100
    240 245 24060 24070 24080 24090 240100
    245 250 24560 24570 24580 24590 245100
    250 255 25060 25070 25080 25090 250100
    255 260 25560 25570 25580 25590 255100
    260 265 26060 26070 26080 26090 260100
    265 270 26560 26570 26580 26590 265100
    270 275 27060 27070 27080 27090 270100
    275 280 27560 27570 27580 27590 275100
    280 285 28060 28070 28080 28090 280100
    285 290 28560 28570 28580 28590 285100
    290 295 29060 29070 29080 29090 290100
    295 300 29560 29570 29580 29590 295100
    300 305 30060 30070 30080 30090 300100
